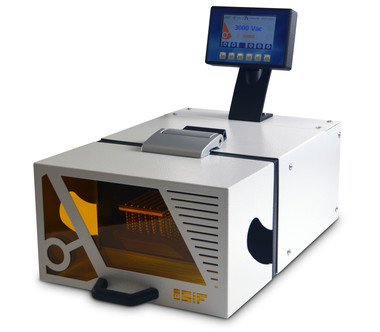

STM_EVO Spark tester

homepage > Products > Spark tester > STM_EVO

The STM series is available in:



AC, alternating current, with a completely sinusoidal waveform, in the following models:

  • STM_EVO_1.0 adjustable frequency3 from 500 to 1000Hz
    SIF chooses to provide instruments with frequencies up to 1000Hz because systems with frequencies above 2kHz have problems due to cable capacity. Most Spark Tester manufacturers DO NOT SHOW THE FREQUENCY MEASUREMENT and in the case of capacity automatically reduce the frequency without informing the customer/operator. SIF measures and shows the frequency on the display and allows the customer to adjust manually the frequency..



DC, direct current, in the following models

  • STM_EVO_DC in direct current



The bead chains electrodes are available with length of 50 – 100 – 150 – 200 mm
(upper length or brushes instead of bead chains available on request).



 Bead chain electrode length
TYPE

50 mm

m/min

100 mm

m/min

150 mm

m/min

200 mm

m/min
  CEI EN IEC  UL

 CEI EN IEC

  UL  CEI EN IEC  UL

 CEI EN IEC

  UL
STM_EVO_1.0  1200 333  2400  666  3000  1000  3000  1333
STM_EVO_DC   3000 3000   3000   3000
All models comply with the Standards CEI – EN – IEC 62230, UL 1581, UL 444, BS5099, GOST 2290-78
 SMALL WIRE sino a diametro 30 mm
 TYPE

Monoblock

  Small  Vertical

Mini compact


kV

 kV kV

kV
 STM_EVO_1.0     15
 STM_EVO_DC     10-15-20-25
  Ask SIF for more informations.

ATTN. In this table you find an indication of the standard models, for any other request we invite you to contact our staff to offer you an equipment tailored to your needs!
